5145154-8
Manufacturer:
TE Connectivity
Mfr.Part #:
5145154-8
Datasheet:
Description:

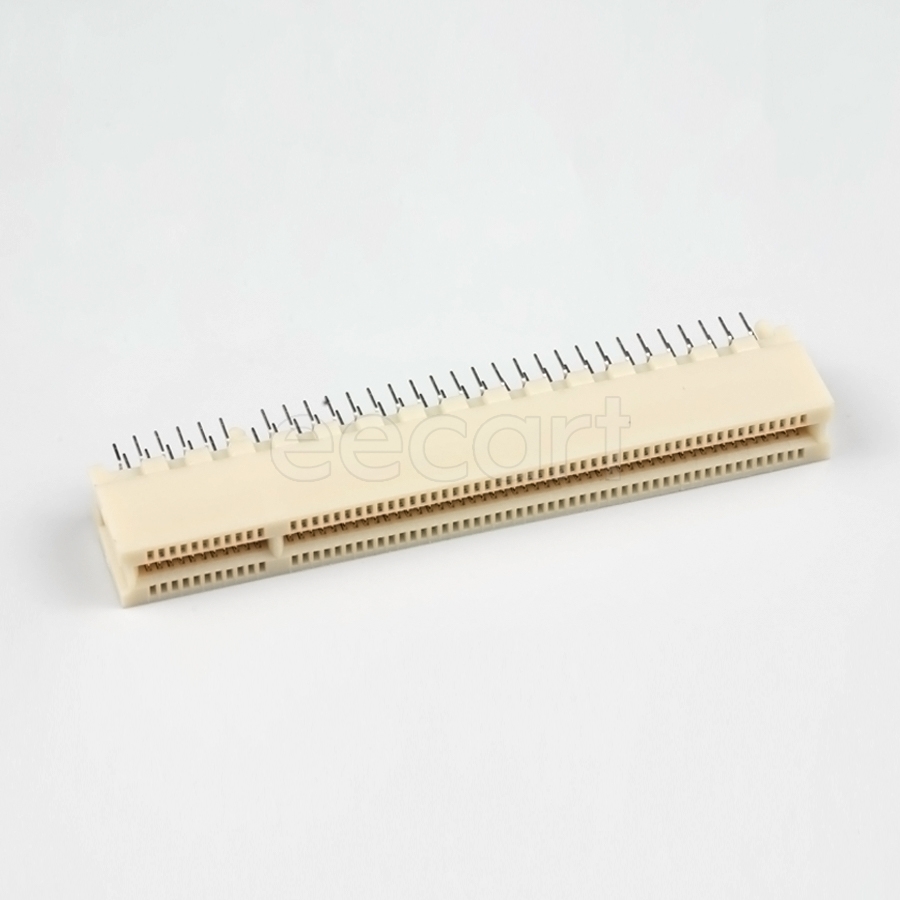

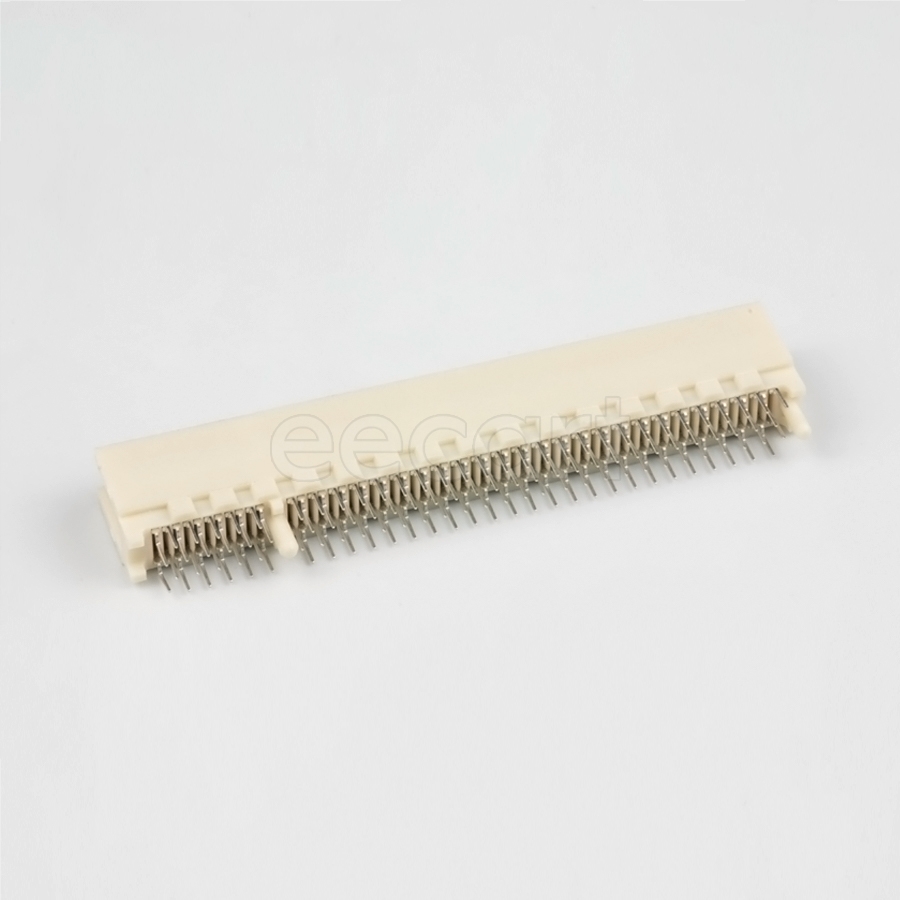

Edgeboard Connectors Through Hole Female Vertical Number of Positions:120
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Length | 84.836 mm |
| Width | 8.7884 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 13.97 mm |
| Packaging | Bulk |
| Voltage Rating | 203 V |
| Depth | 15.49 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| REACH SVHC | No SVHC |
| Weight | 12.58 g |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Orientation | Vertical |
| Operating Supply Voltage | 203 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural, White |
| Gender | Female |
| Number of Contacts | 120 |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Insulation Material | Thermoplastic |
| Card Thickness | 1.57 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 203 V |
| Housing Color | Natural |
| Address Bus Width | 32 b |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.5748 mm |
| Tail Length | 3.18 mm |
| Plating Thickness | 2.537 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.18 mm |
| Mounting Angle | Vertical |
| Card Type | PCI |
